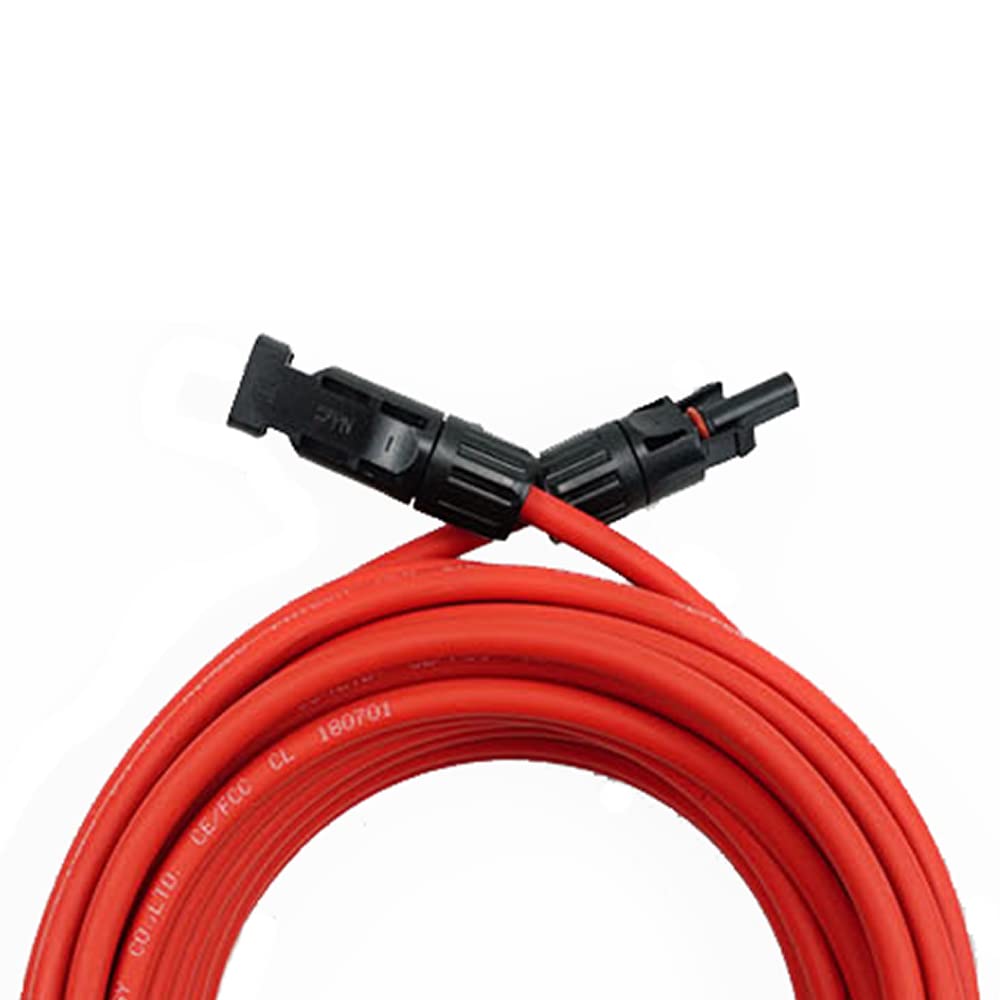

Connecting Cables with Compatible Plugs and Sleeves Ready-made Positive and Negative Kits - For Wiring Parallel Circuits

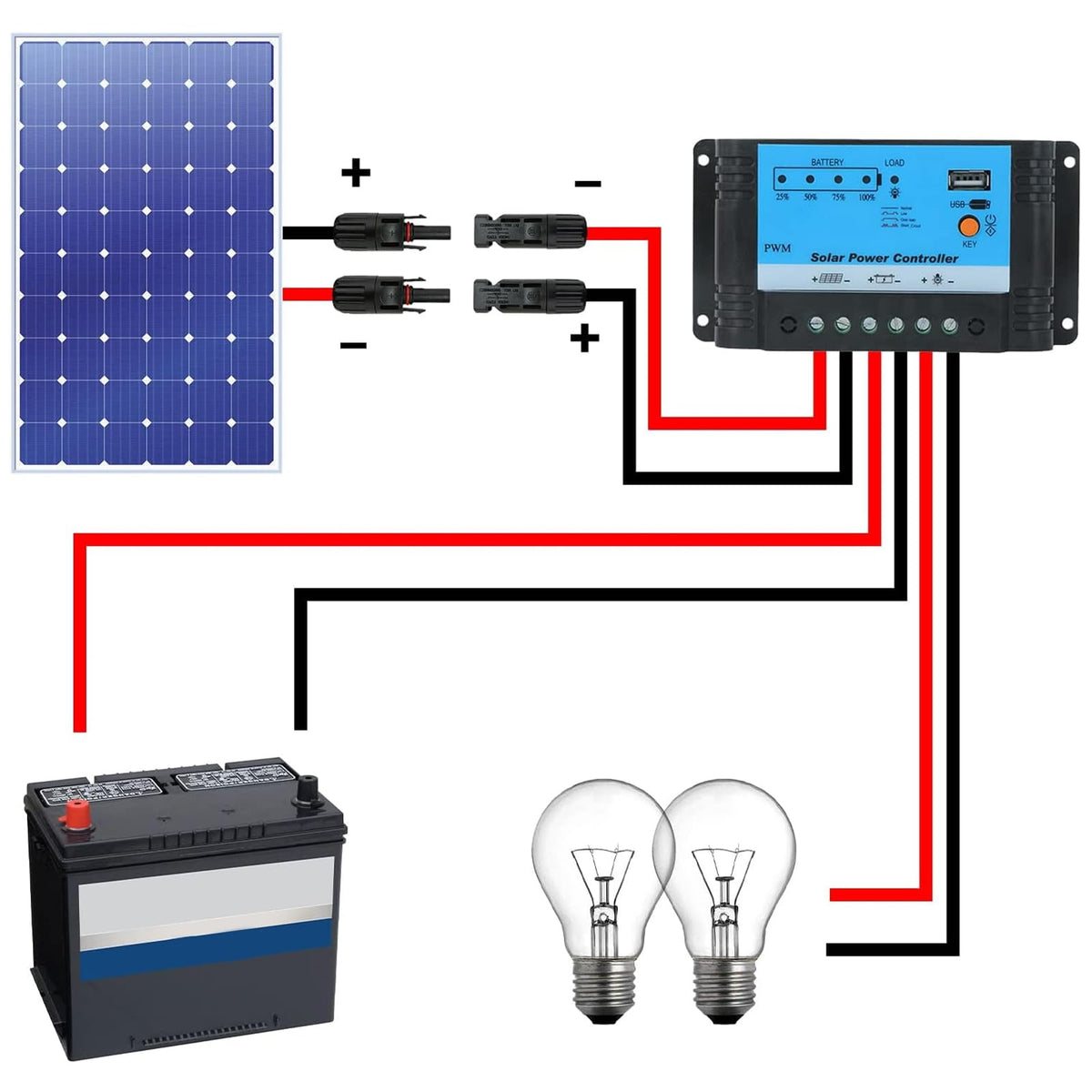

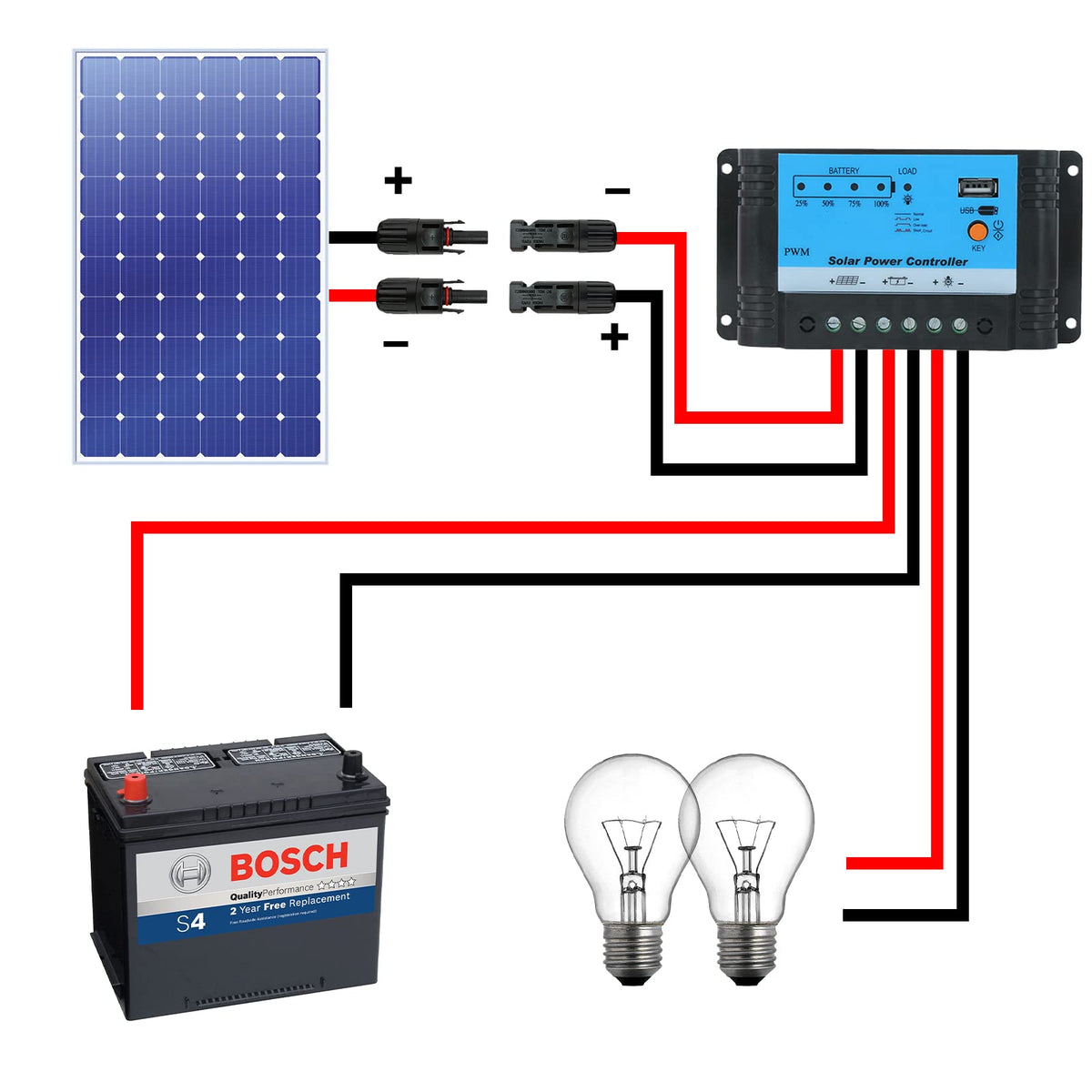

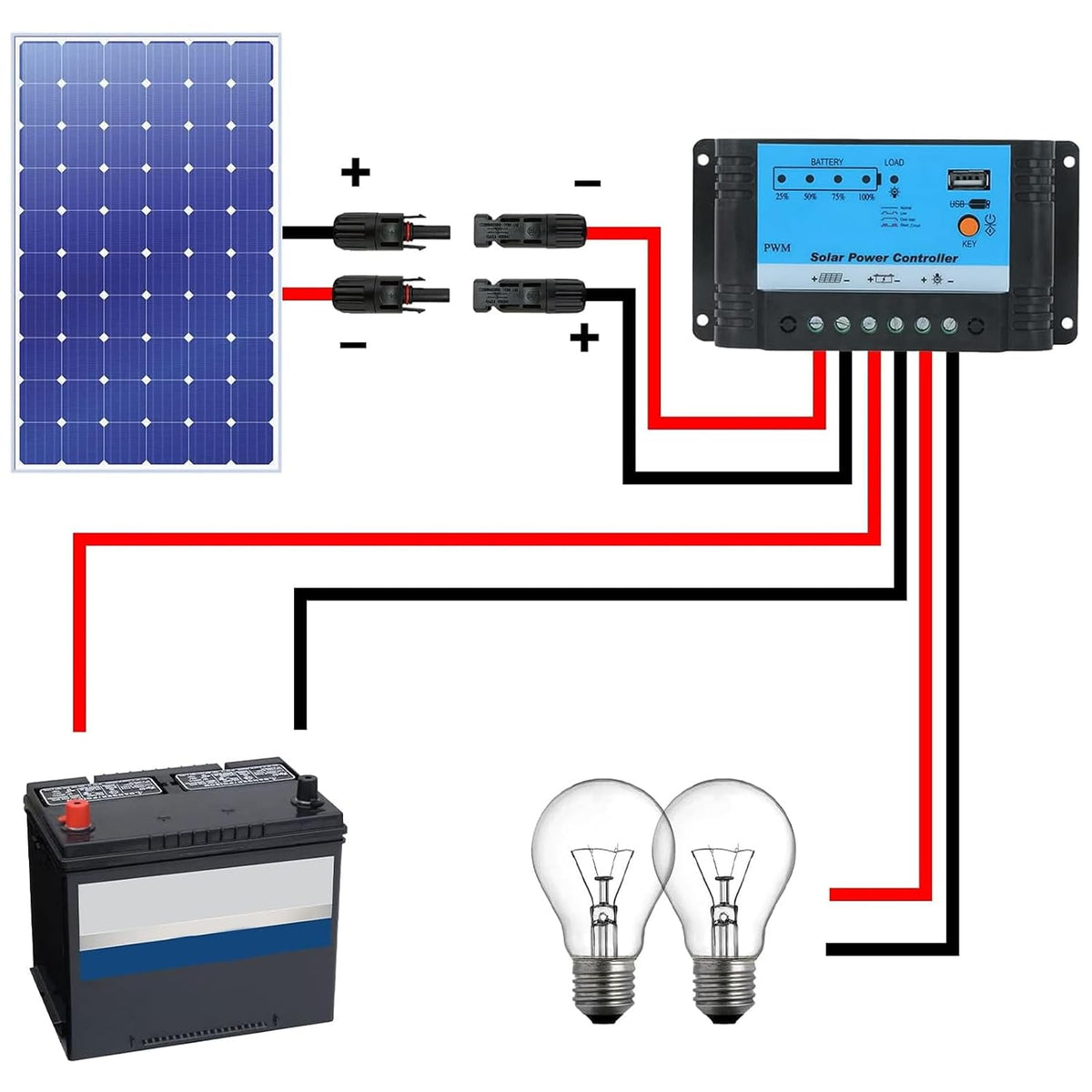

Simply plug the connecting cable of the junction box on the module or the distributor plug of the photovoltaic system into the solar charge controller.
Technical Specifications:

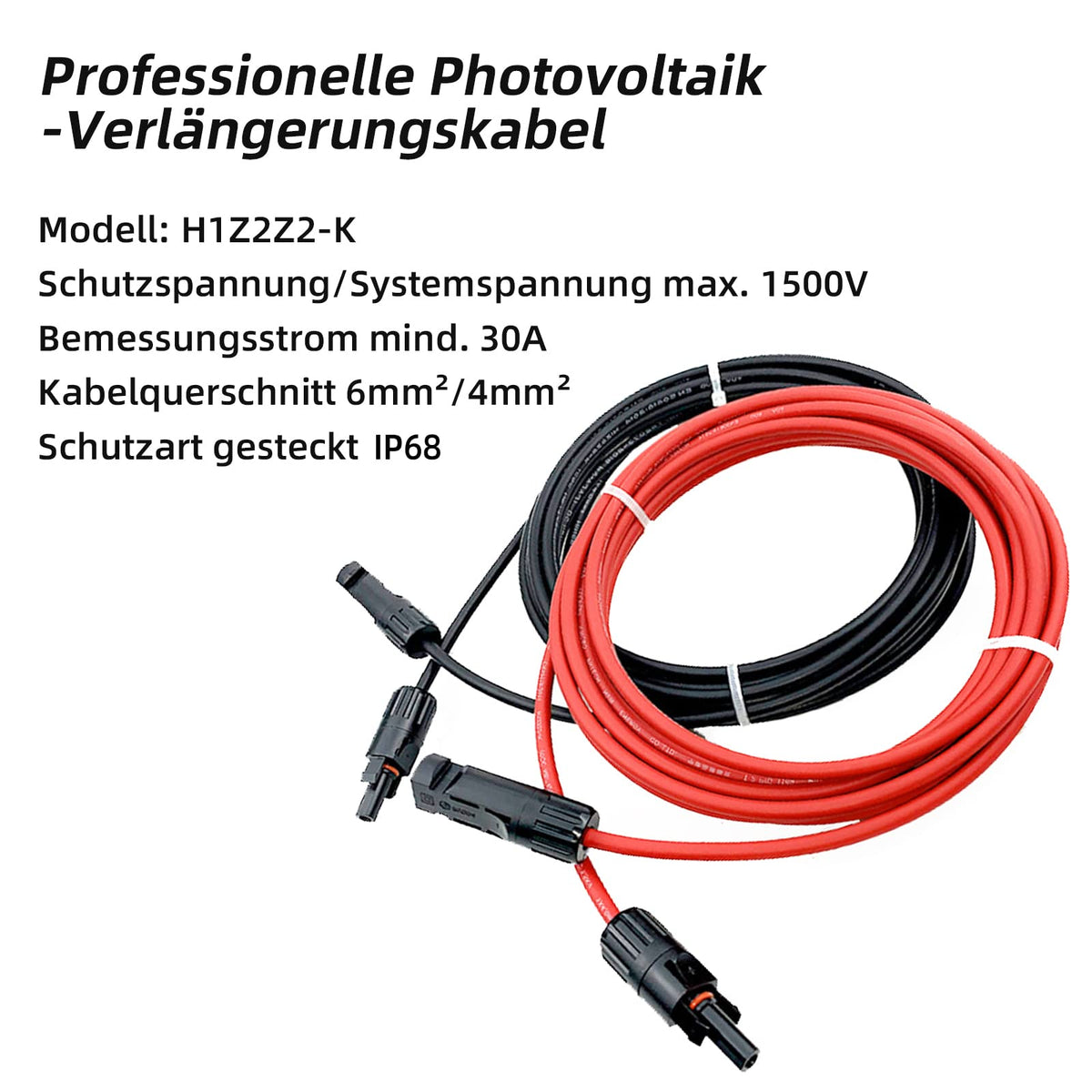

Model: PV1-F（H1Z2Z2-K）
Protection voltage/system voltage up to 1500V
Rated current at least 30A

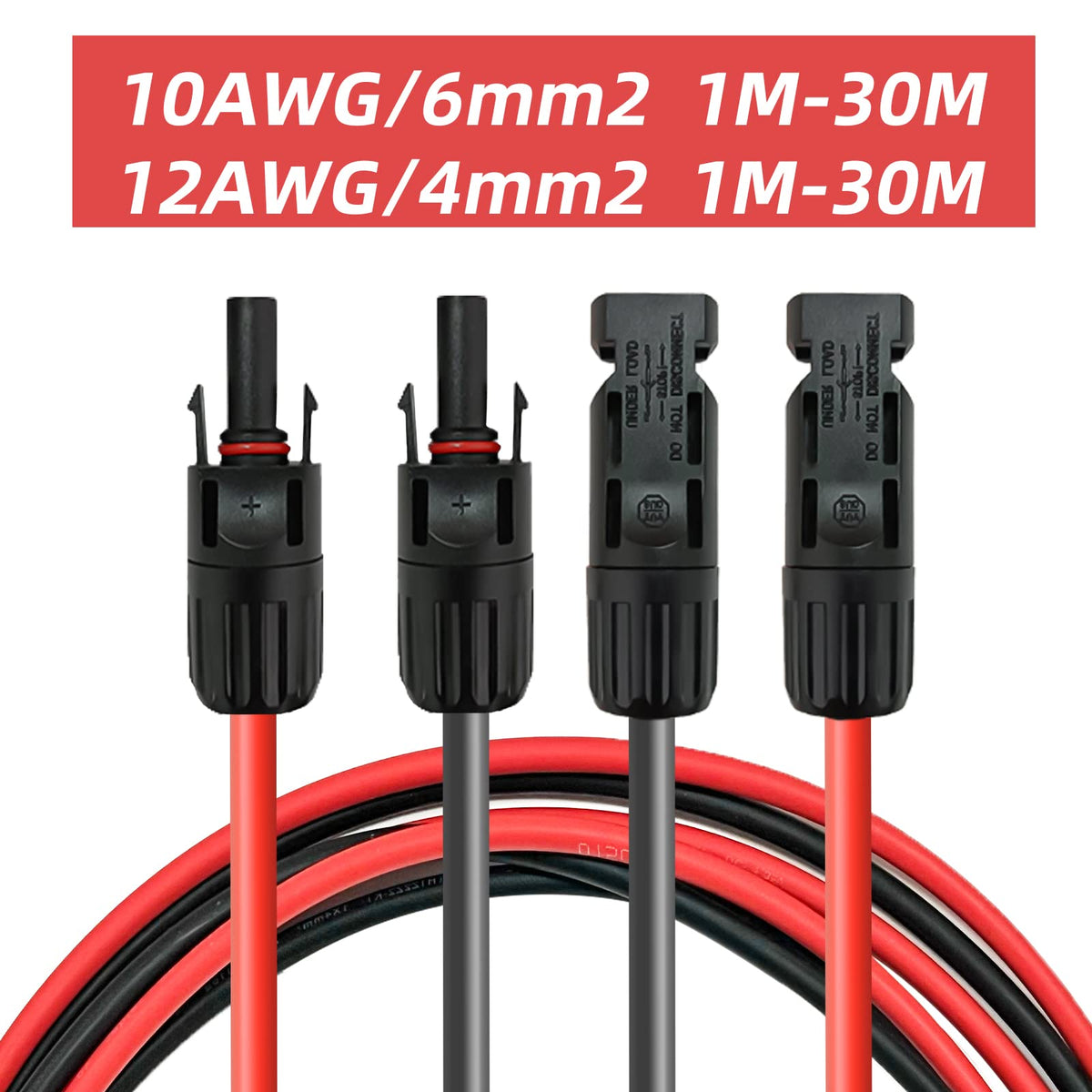

Cable cross section 6mm²

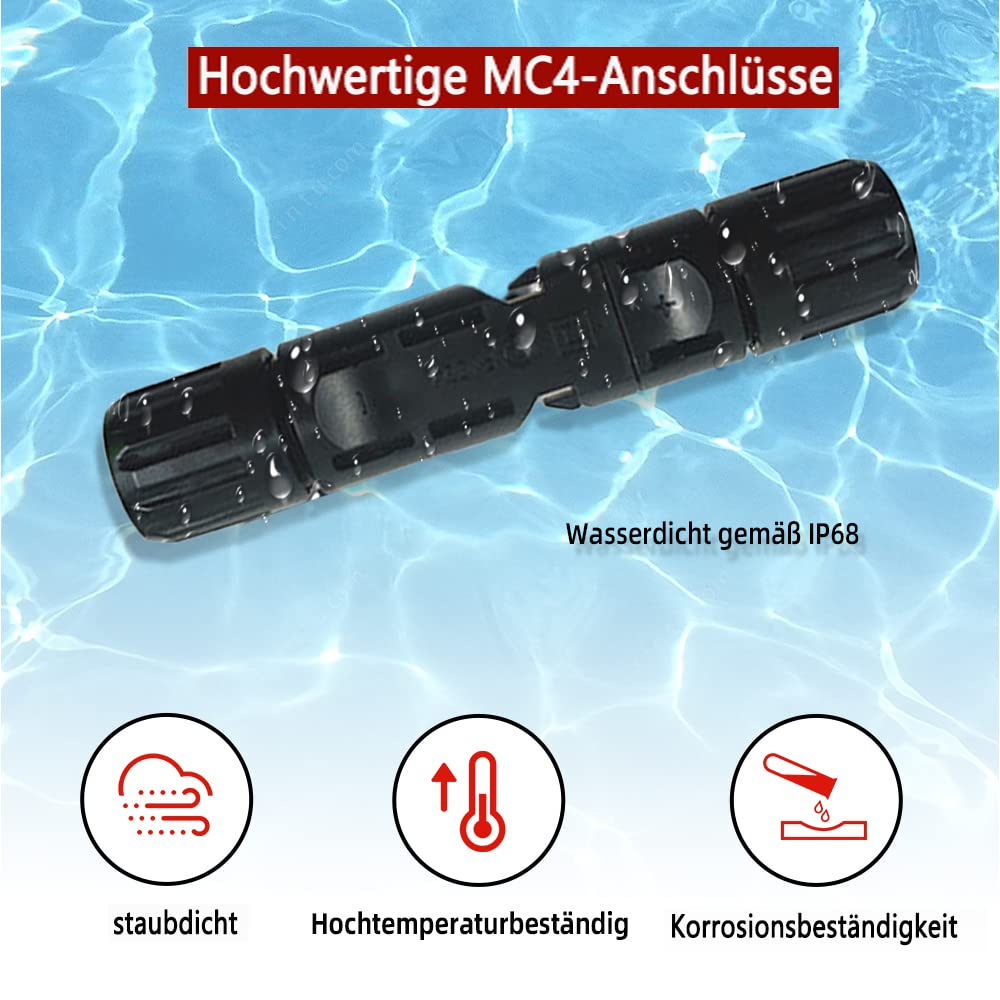

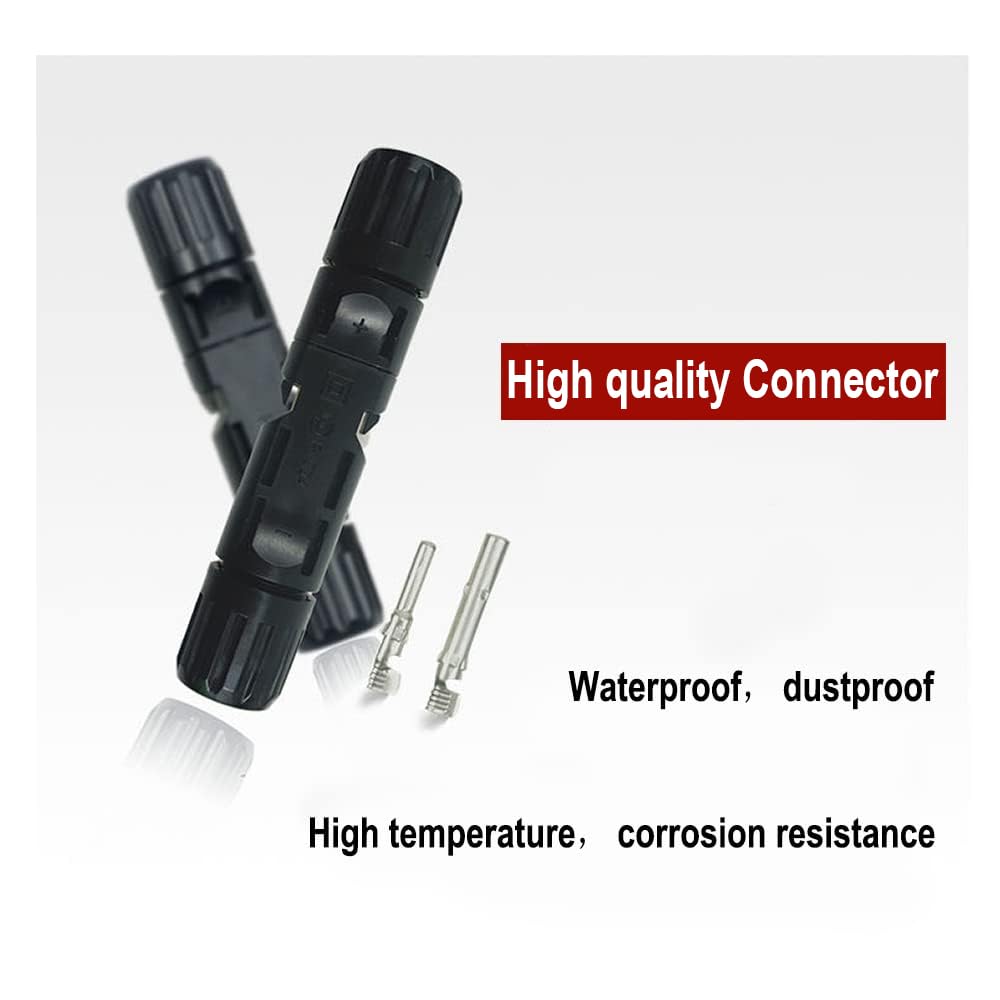

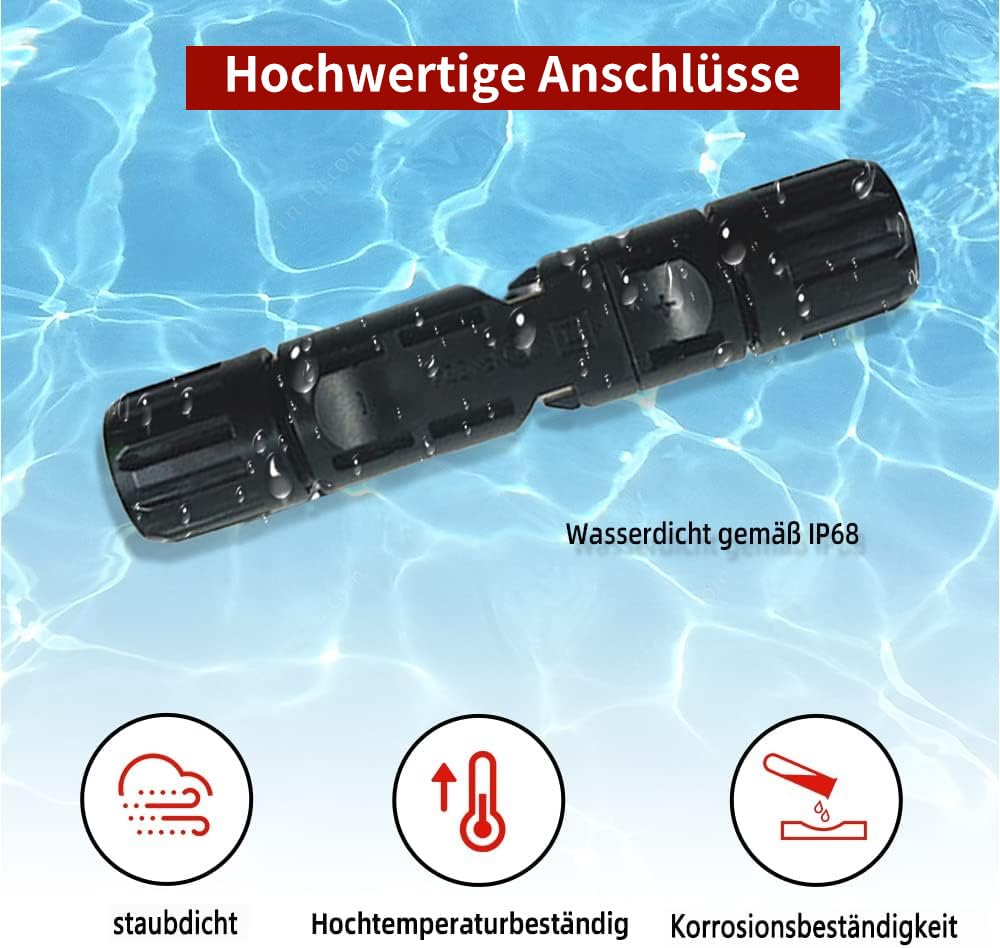

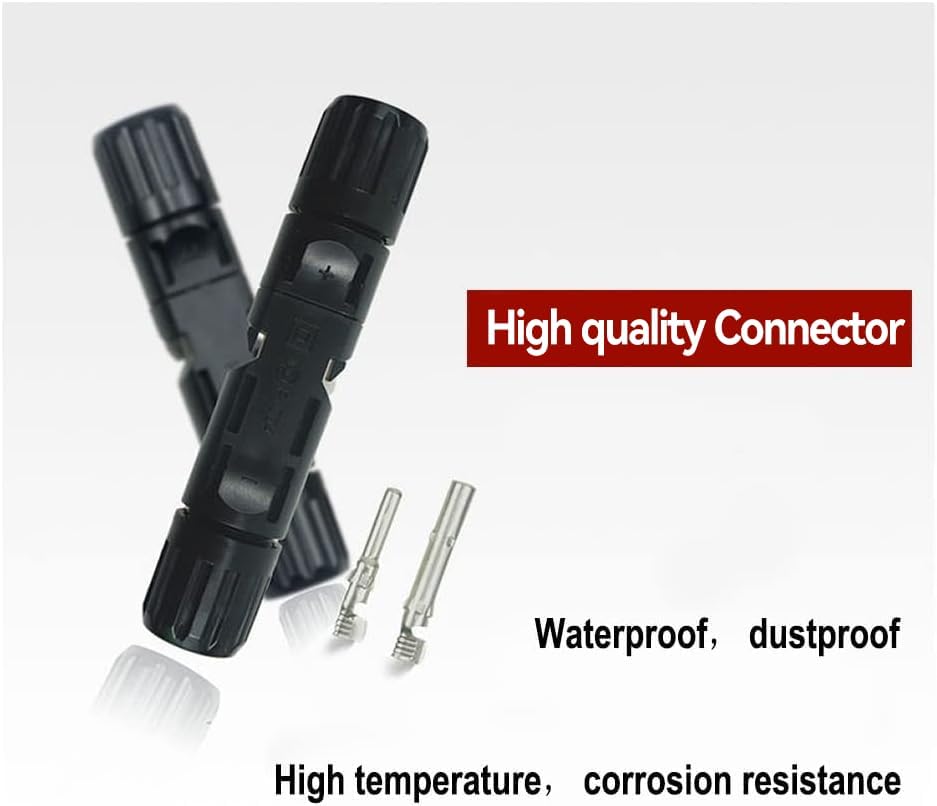

Degree of protection IP67 when plugged in
characteristic:

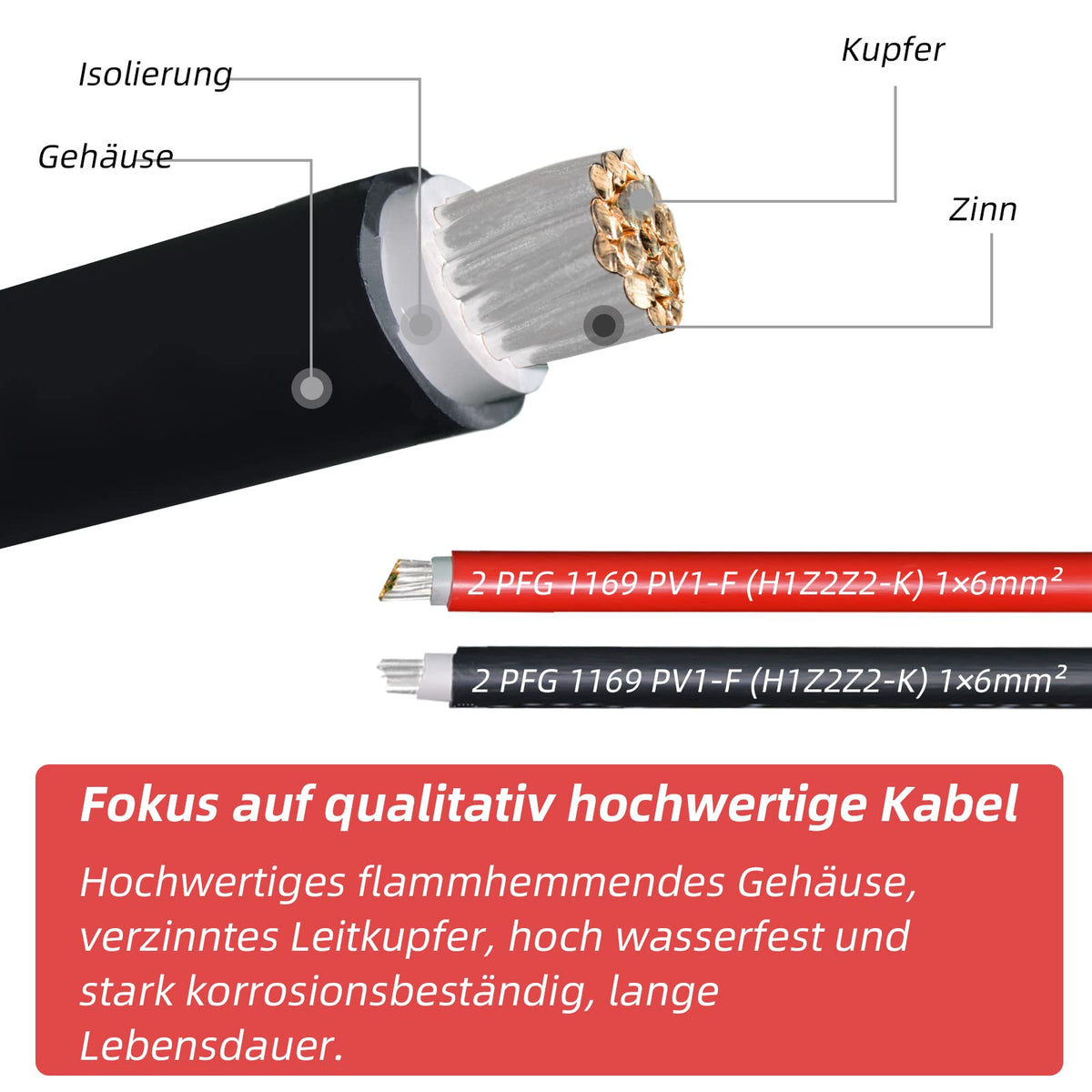

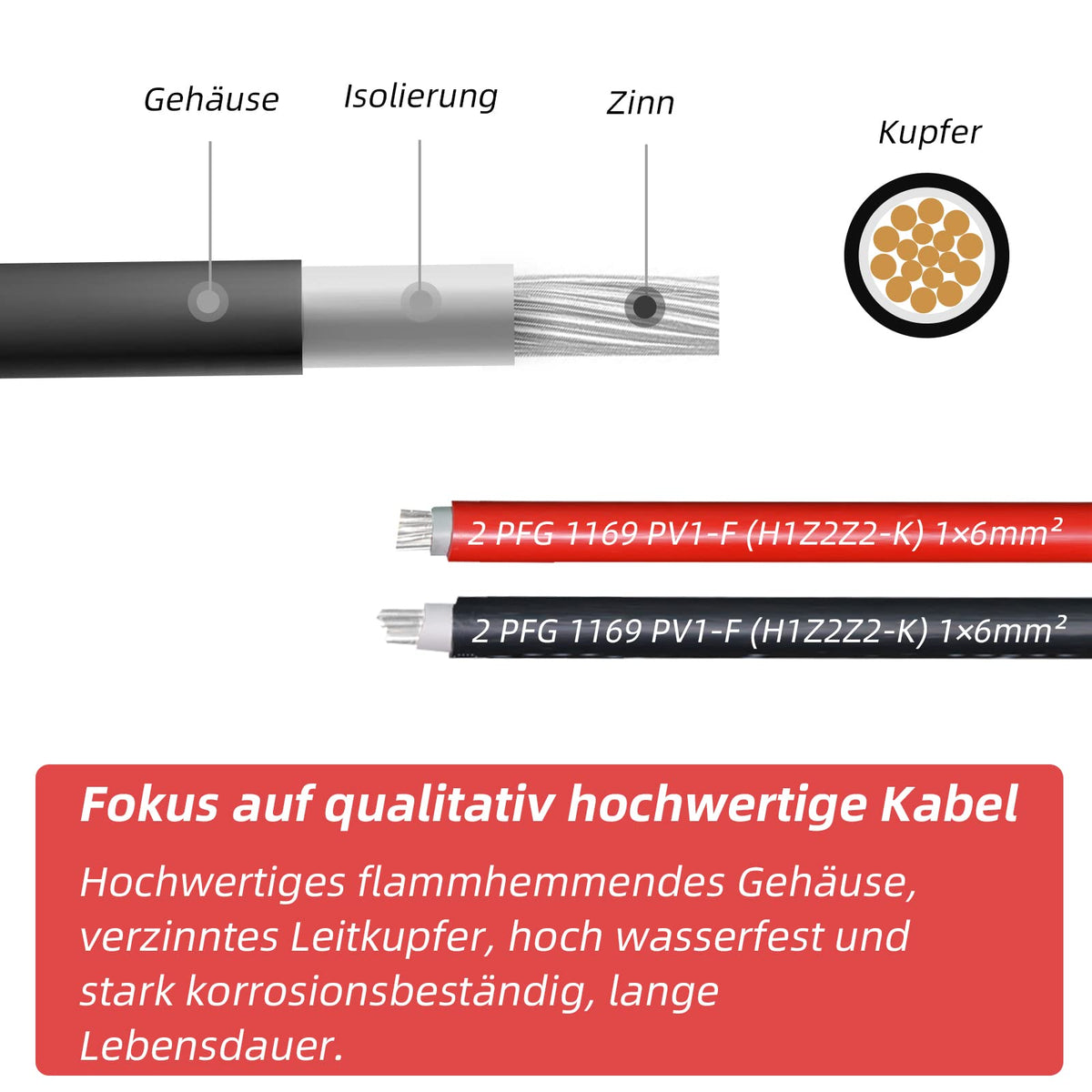

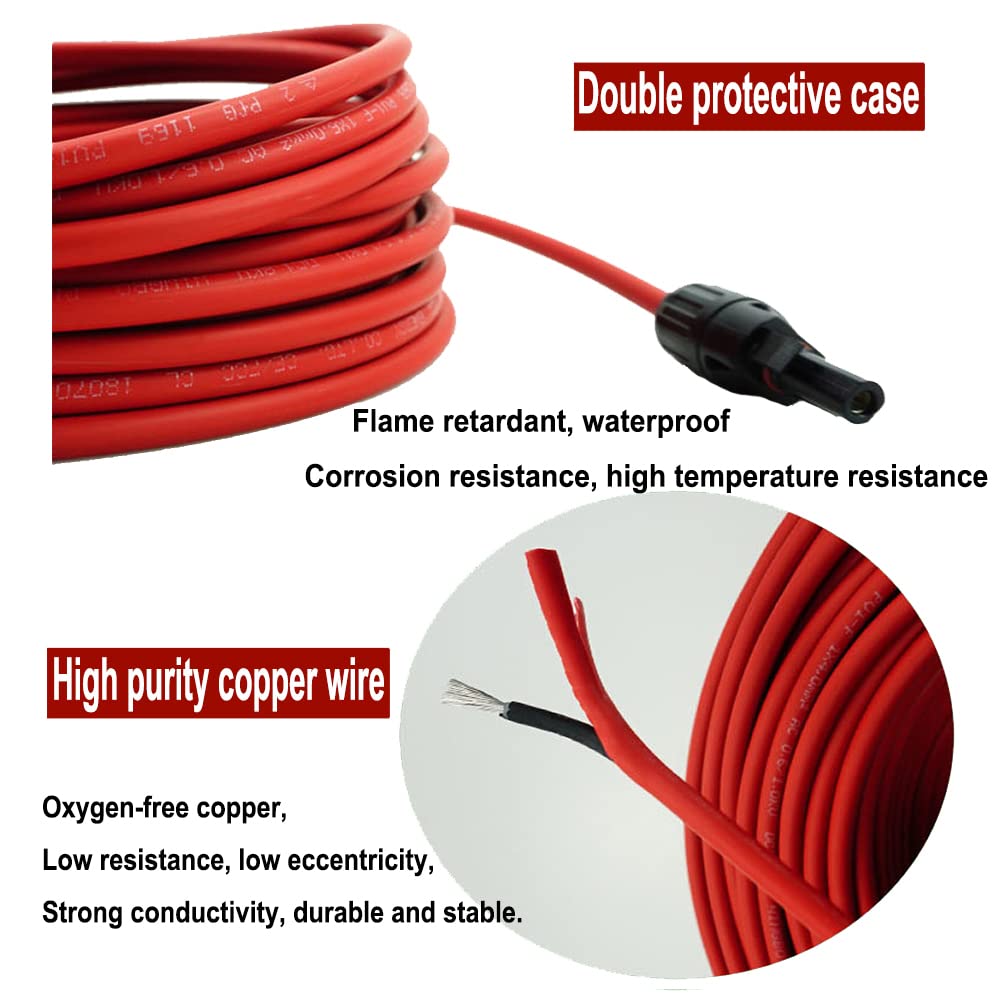

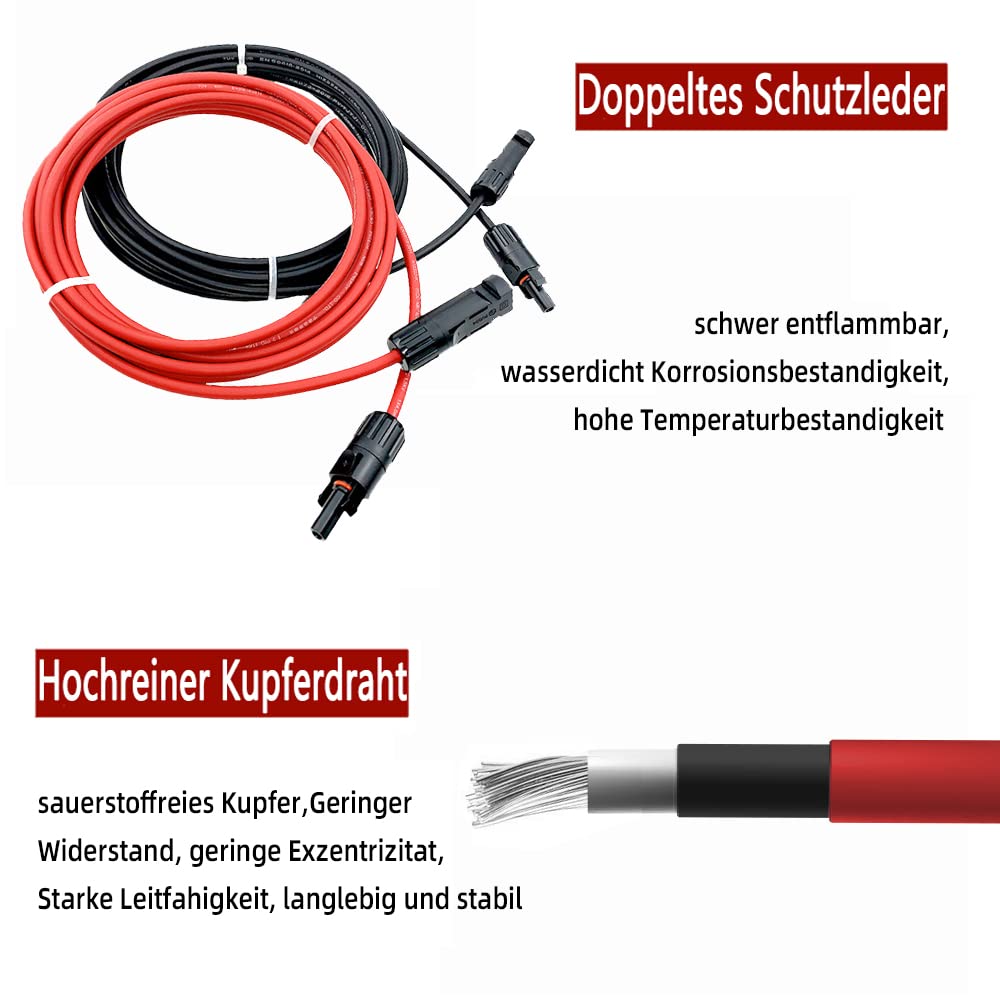

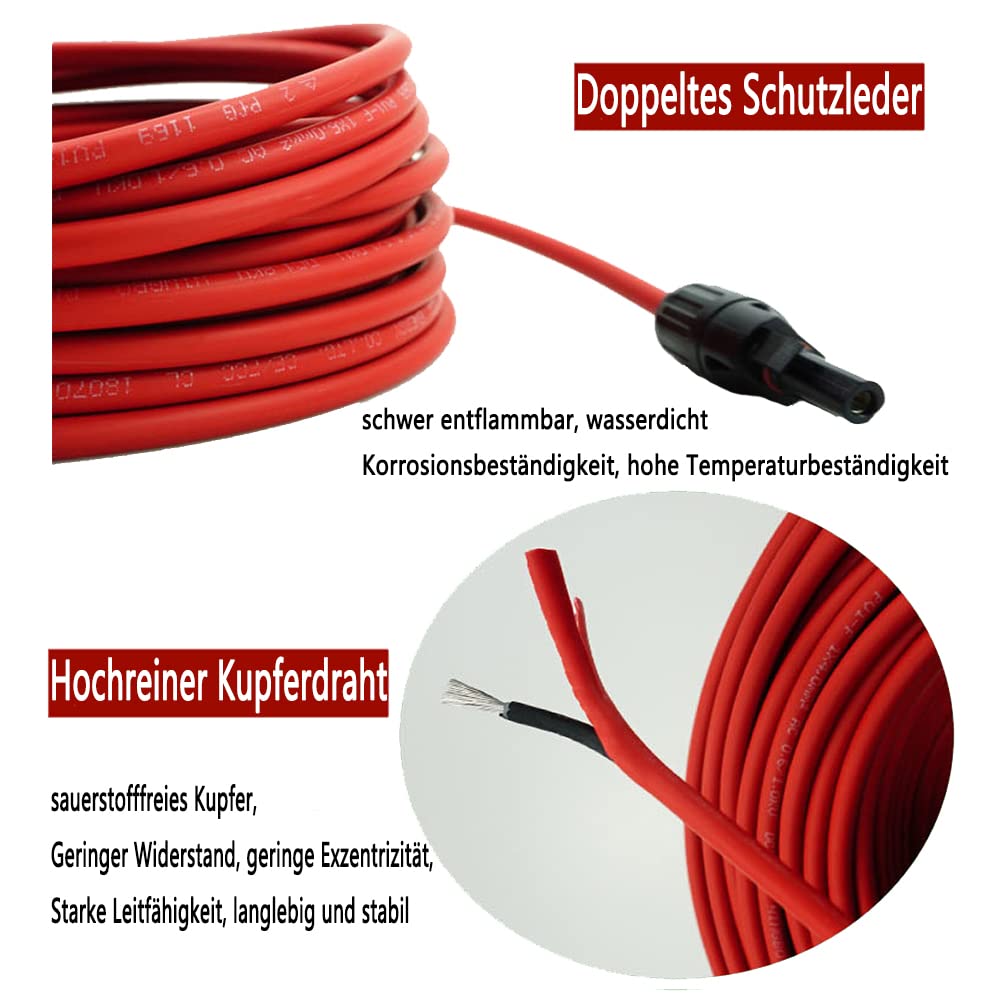

Conductor according to IEC 60228 class 5 tinned copper
Ozone resistance, UV resistance, halogen free, acid and alkali resistance
Short circuit resistance: up to 200°C / 5s
Thermal expansion test at 200°C
Rated voltage (Uo/U): AC 0.6/1.0 kV / DC 0.9/1.5 kV
AC voltage test: AC 6.5 kV
Maximum allowable voltage: 1.8 kV
Temperature range: -40°C to 90°C
Maximum conductor temperature: 120°C

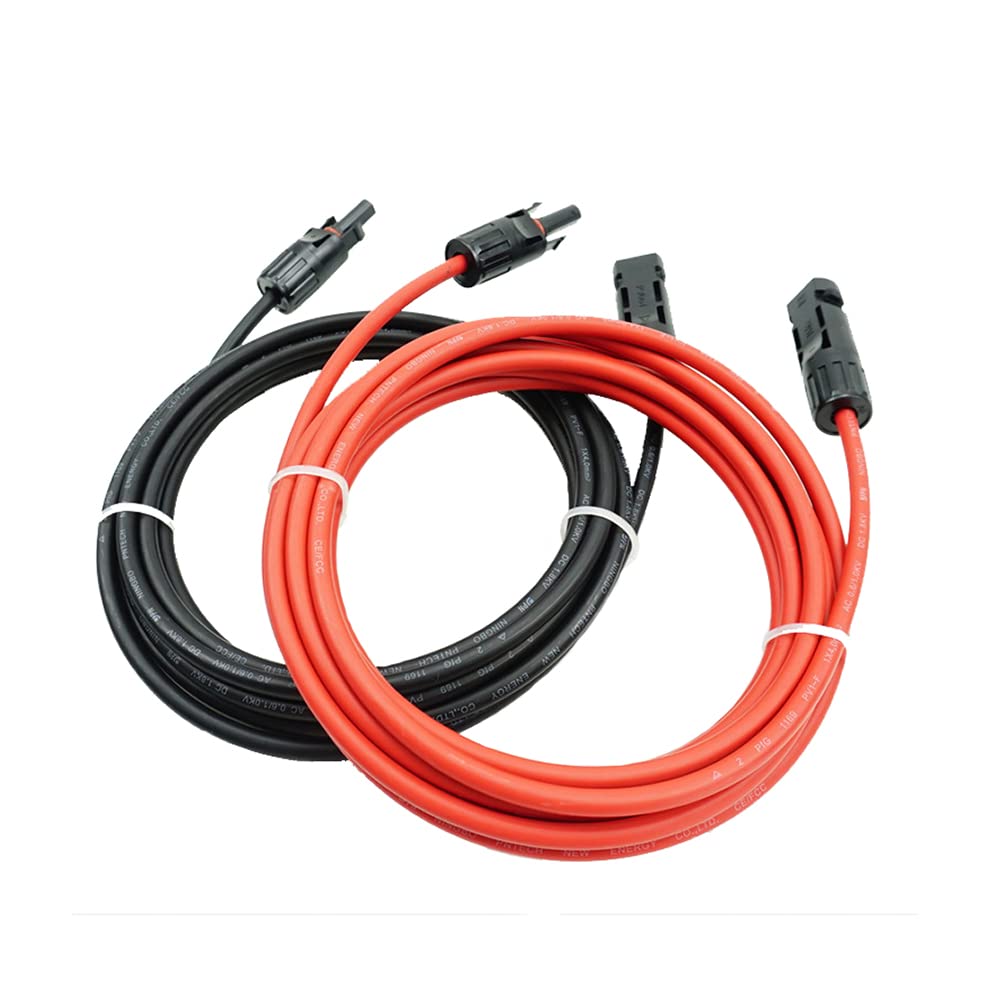

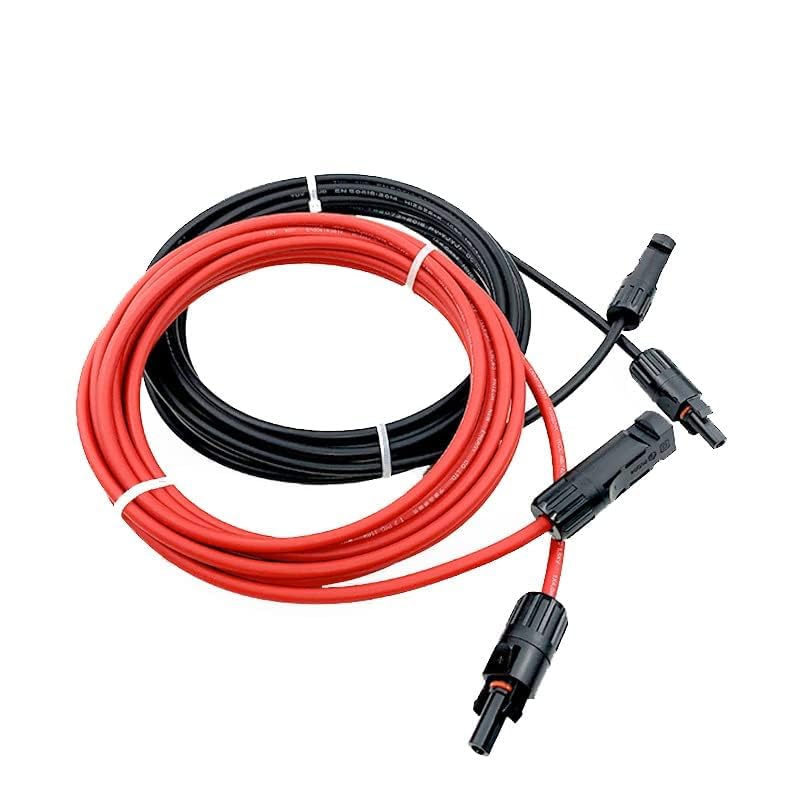

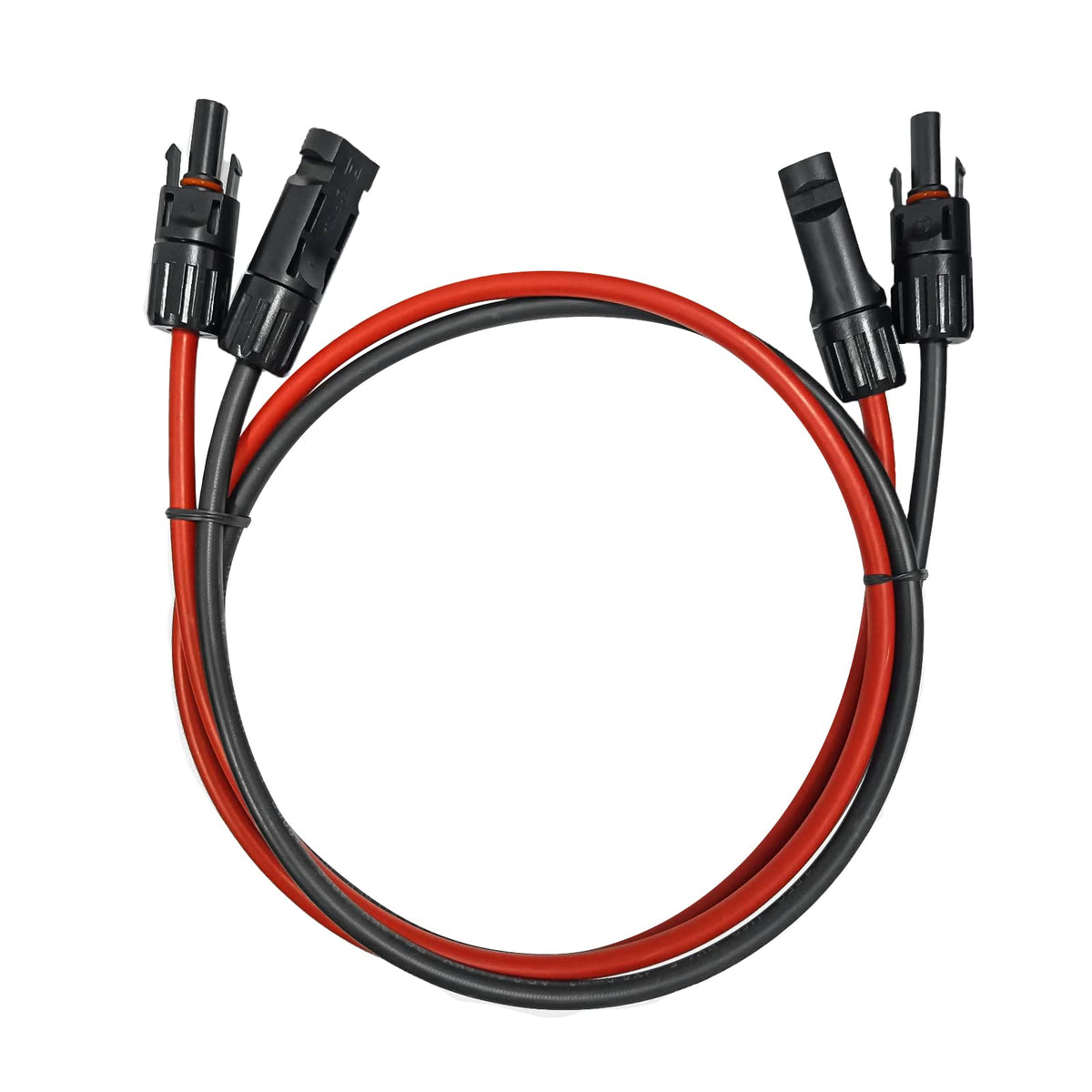

Item list: 1 x red and 1 x black
